TIF700RES Thermally Conductive Gap Filler Pads For Medical Devices
Product descriptions
TlF700RES Series thermally conductive interface materials are applied to fill theair gaps between the heating elements and the heat dissipation fins or the metalbase.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive 8.5W/mK
> Outstanding thermal performance
> High tack surface reduces contact resistance
> Available in varies thicknesses
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
Application
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIF700RES Series |
| Property | Value | Test method |
| Color | Gray | ***** |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 3.2g/cc | ASTM D297 |
| Thickness range | 0.020"(0.50mm)~0.200"(5.0mm) | ASTM D374 |
| Hardness (thickness ≥1.0mm) | 10 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ***** |
| Dielectric Breakdown Voltage | >5000 VAC | ASTM D149 |
| Dielectric Constant | 6.7MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Thermal conductivity | 8.5W/m-K | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
|
|

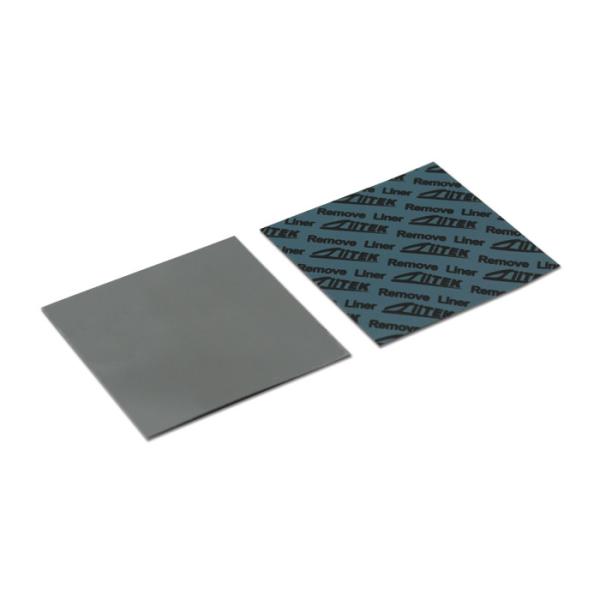

TIF700RES Thermally Conductive Gap Filler Pads For Medical Devices Images
|
